Marine Engines
UM6WG1

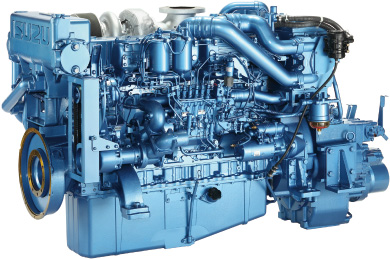

*Image shown may not reflect actual engine configuration.
| Engine Model | UM6WG1TC-AB | |
|---|---|---|
| Rated output kW(PS)/min-1 |
Continuous heavy duty | 377 (512) / 1800 |
| Heavy Duty | 447 (608) / 2000 | |
| Medium duty | 485 (659) / 2100 | |
| Light duty | ー | |
| Displacement Lit. (cid) | 15.6 (957) | |
| Bore x Stroke mm (in) | 147 × 154 (5.78 × 6.06) | |
| Configuration | 6-cylinder, vertical in-line, 4-cycle deisel engine | |
| Aspiration | Turbo chargered / Intercooler | |
| Exhaust gas status | IMO Tier II | |
| Marine gear | Model | MGN80B |
| Reduction ratio | 2.03, 2.55, 2.96, 3.31, 3.48 | |
| Leaflet | ||
- Rating Definitions : Ratings are based on conditions of 100kPa (1 bar) and 30 to 60% relative humidity at 25℃(77°F).
- Continuous Heavy Duty
- Duty Cycle; Operation up to 100% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 24 hours and annual usage is unlimited. - Heavy Duty
- Duty Cycle; Operation up to 80% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 10 hours and annual usage up to 4000 hours. - Medium Duty
- Duty Cycle; Operation up to 60% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 6 hours and annual usage up to 3000 hours. - Light Duty
- Duty Cycle; Operation up to 40% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 2 hours and annual usage up to 2000 hours.
| Engine Model | UM6WG1TCX | |
|---|---|---|
| Rated output kW(PS)/min-1 |
Continuous heavy duty | ー |
| Heavy Duty | ー | |
| Medium duty | 515 (700) / 2060 | |
| Light duty | 537 (730) / 2100 | |
| Displacement Lit. (cid) | 15.6 (957) | |
| Bore x Stroke mm (in) | 147 × 154 (5.78 × 6.06) | |
| Configuration | 6-cylinder, vertical in-line, 4-cycle deisel engine | |
| Aspiration | Turbo chargered / Intercooler | |
| Exhaust gas status | IMO Tier II | |
| Marine gear | Model | MGN80B |
| Reduction ratio | 2.03, 2.55, 2.96, 3.31, 3.48 | |
| Leaflet | ||
- Rating Definitions : Ratings are based on conditions of 100kPa (1 bar) and 30 to 60% relative humidity at 25℃(77°F).
- Continuous Heavy Duty
- Duty Cycle; Operation up to 100% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 24 hours and annual usage is unlimited. - Heavy Duty
- Duty Cycle; Operation up to 80% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 10 hours and annual usage up to 4000 hours. - Medium Duty
- Duty Cycle; Operation up to 60% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 6 hours and annual usage up to 3000 hours. - Light Duty
- Duty Cycle; Operation up to 40% of the time at rated power and speed.
Typical operation hours; Continuous usage is allowed up to 2 hours and annual usage up to 2000 hours.
| Model | UM6WG1TCG |
|---|---|
| Maximum output（kW(PS)/min-1） | 607(825)/2125 |
| Rated output（kW(PS)/min-1） | 552(750)/2060 |
| Displacement（L） | 15.6 |
| Cylinder count - inside diameter x stroke (mm) | 6 - 147×154 |
| Dimensions (L×W×H mm) | 2264×1066×1396 |
| Dry weight (kg) | 2140 |
| Intake system | Turbo with intercooler |
| Combustion system | Direct injection type |
| Compatible exhaust gas regulations | Compliant with Tier 2 regulations |
| Loadable tonnage hierarchy classification | D (10 - less than 15 tons) |
※This product is designed for use in Japan. Specifications may vary depending on the region in which it is used.
